Render Boxes

box

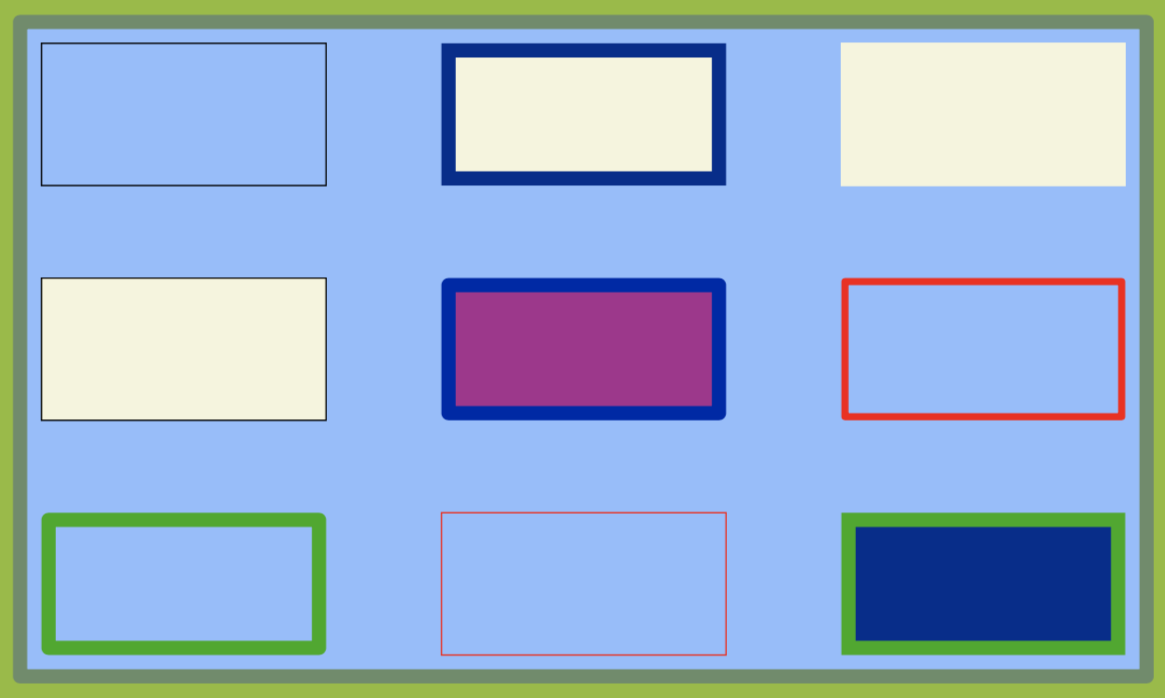

This primitive renders a rectangular region.

A box has a position. The position may be defined by the coordinates of its lower left corner: “pos”: [100,100]

A box max also be anchored and thereby positioned:: “anchor”:

You may nudge the position by some horizontal/vertical delta dx/dy “dx”: 50, “dy”: 50,

A box needs a width and a height.

A box may have a border: A Border has a width, a color and an optional style: “border”: { “name”: “$myBorder”, “width: 100, “col”: “White” or “#1E90FF” “style: miter", "round" or "bevel },

A box may have a margin: “margin”: { “width”: 10 },

You may specify a fill color. “fillCol”: “black”

You may specify a rotation angle: “rot”: 90

Finally a named box may serve as a template. “name”: “$colorBox”

You disable rendering the box like with all primitives: “hide”:true
